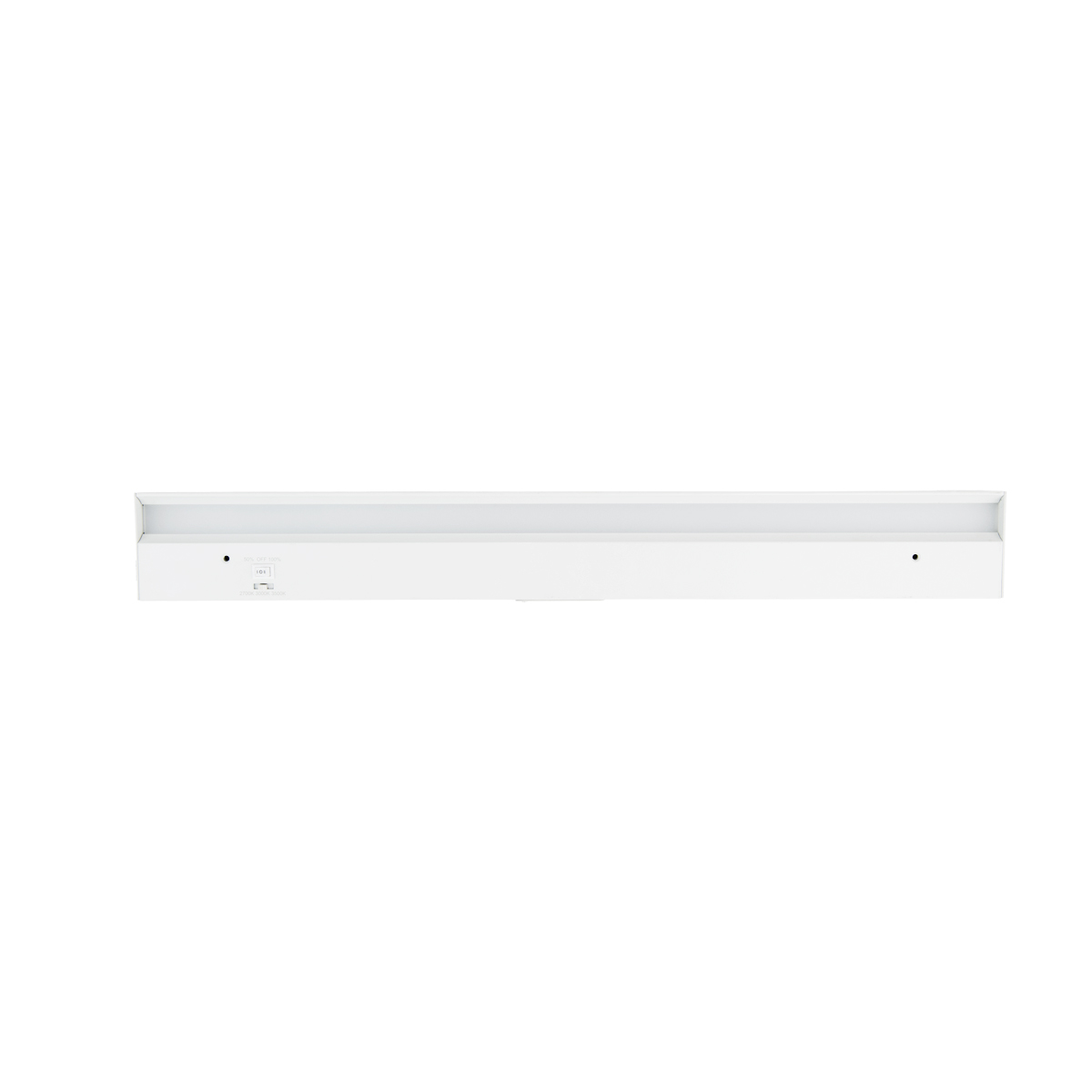

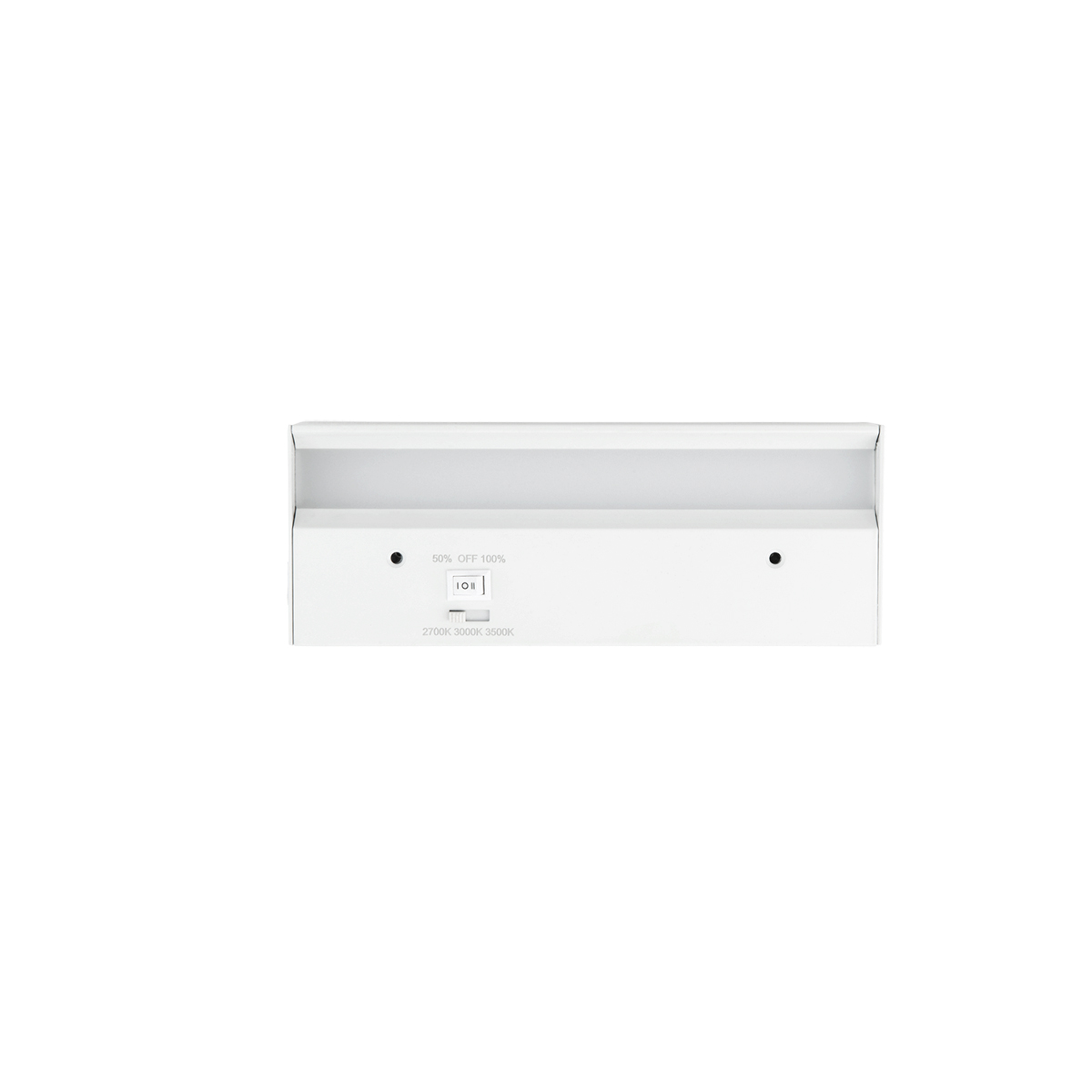

120V 3-CCT Barlight Undercabinet Task Luminaire

Specifications

Order Number:
model color temp & cri finish lumens
BA-AC08 - 120 VAC - 3-CCT 8IN 2700K/3000K/3500K - 90 WT - White 355
BA-AC18 - 120 VAC - 3-CCT 18IN 2700K/3000K/3500K - 90 WT - White 600
BA-AC24 - 120 VAC - 3-CCT 24IN 2700K/3000K/3500K - 90 WT - White 910
BA-AC30 - 120 VAC - 3-CCT 30IN 2700K/3000K/3500K - 90 WT - White 1075

Features

  • Delivered Lumens: up to 1075lm
  • 2700K/3000K/3500K
    , 2700K/3000K/3500K
  • CRI: 90
  • Input: 120 VAC, 50/60Hz
  • ELV Dimming: 100-10%
  • Rated Life: 50000 Hours
  • Construction: Extruded aluminum with Acrylic Diffuser
  • 3-CCT Switchable between 2700K and 3500K
  • Does not require any driver or transformer
  • Backlighting with parabolic reflector allows a high uniformity of light
  • Minimal space between diffusers for a visually seamless line of illumination
  • True 1" profile
  • ACLED driverless technology

Line Drawing

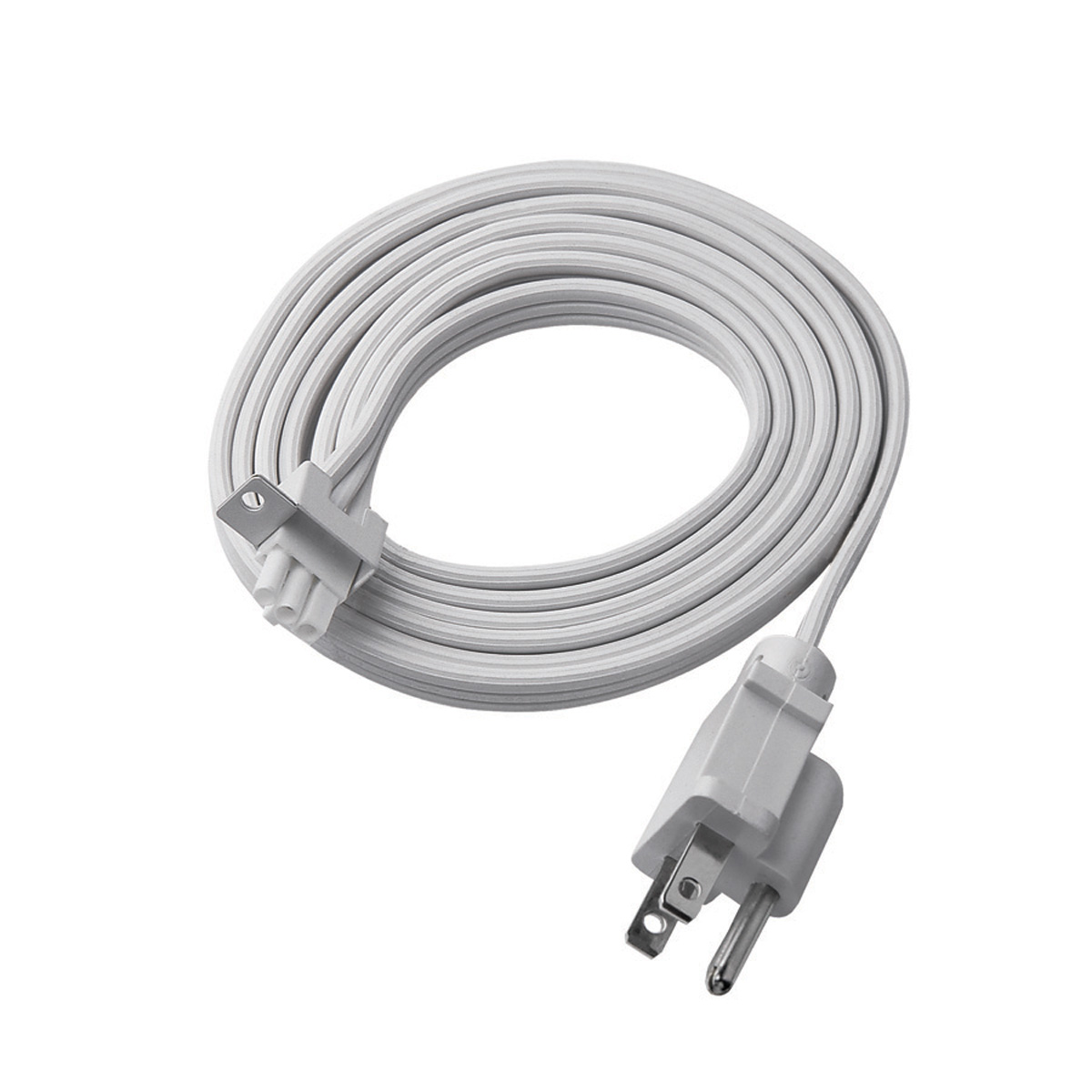

Accessories
