Charge 8010 11W H/J/L Track Luminaire

charge-8010
charge-8010
charge-8010

Specifications

Order Number:
system type & voltage model color temp & cri lumens cbcp finish
H - 120 VAC 8010 30 - 3000K - 90 850 1196 BK - Black
H - 120 VAC 8010 30 - 3000K - 90 850 1196 WT - White
J - 120 VAC 8010 30 - 3000K - 90 850 1196 BK - Black
J - 120 VAC 8010 30 - 3000K - 90 850 1196 WT - White
L - 120 VAC 8010 30 - 3000K - 90 850 1196 BK - Black
L - 120 VAC 8010 30 - 3000K - 90 850 1196 WT - White

Features

  • Delivered Lumens: 850lm
  • CBCP: 1196
  • 3000K
  • CRI: 90
  • Power: 11W
  • Input: 120 VAC, 50/60Hz
  • ELV Dimming: 100-5%
  • TRIAC Dimming: 100-5%
  • Rated Life: 50000 Hours
  • Construction: Die-cast aluminum with frosted TIR lens
  • 350° horizontal and 90° vertical aiming
  • Driver concealed within the fixture

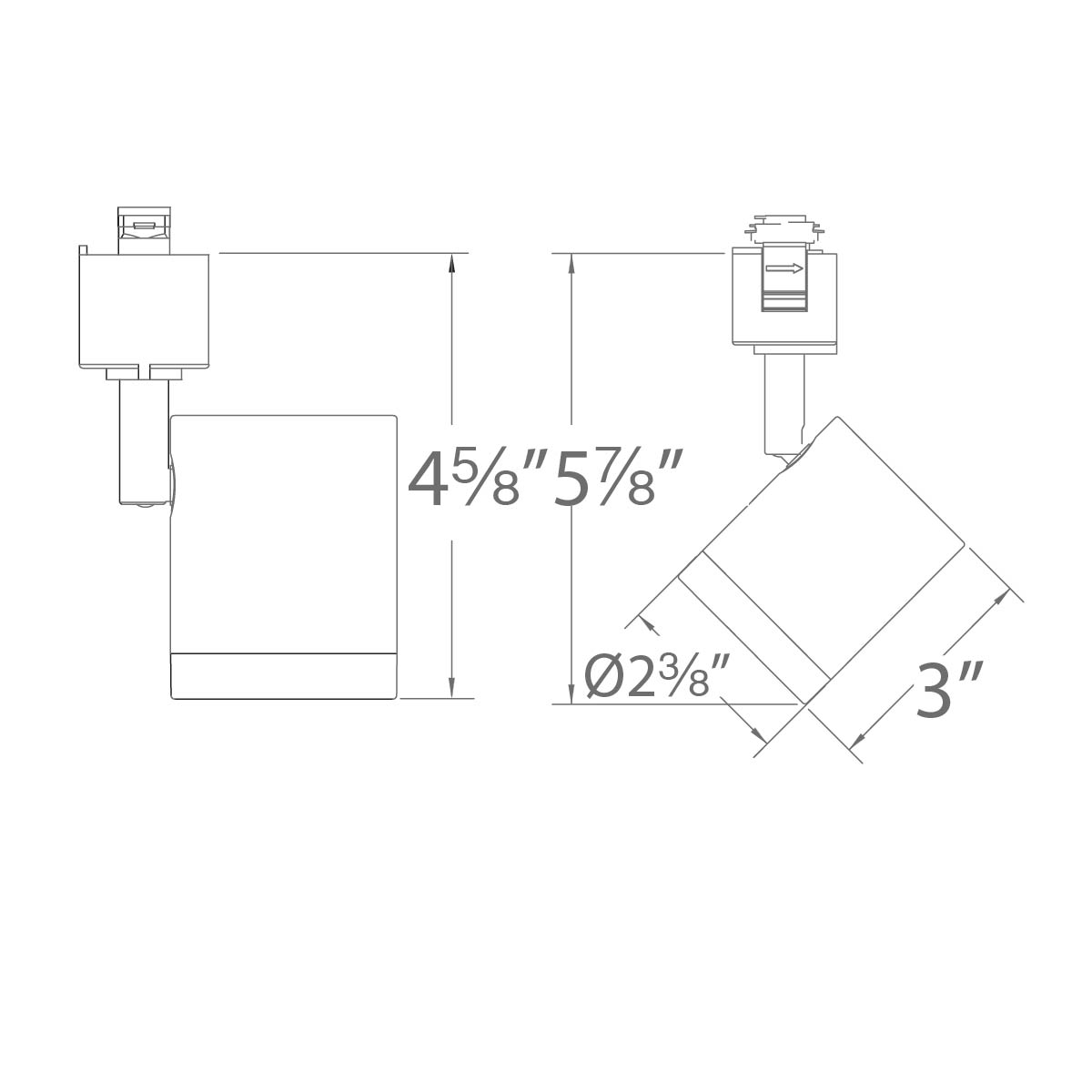

Line Drawing
